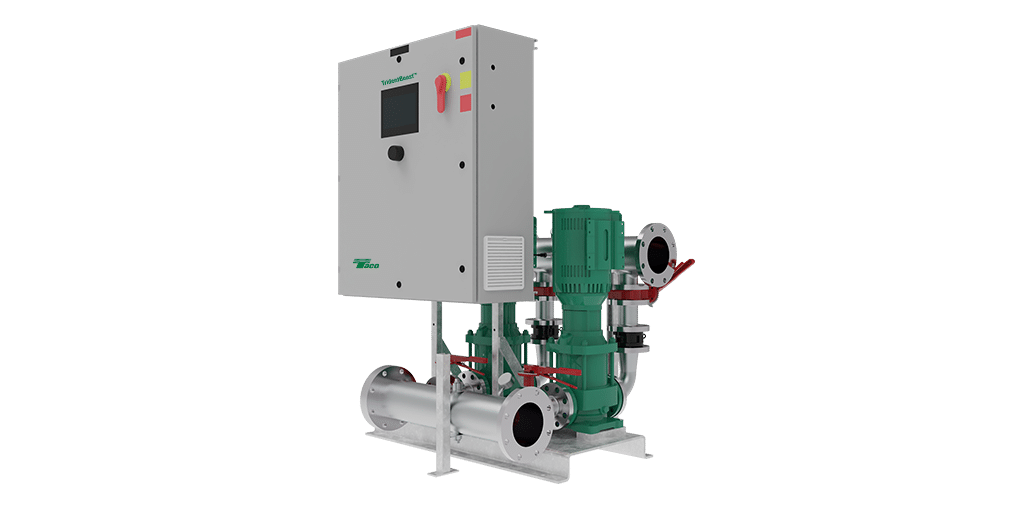

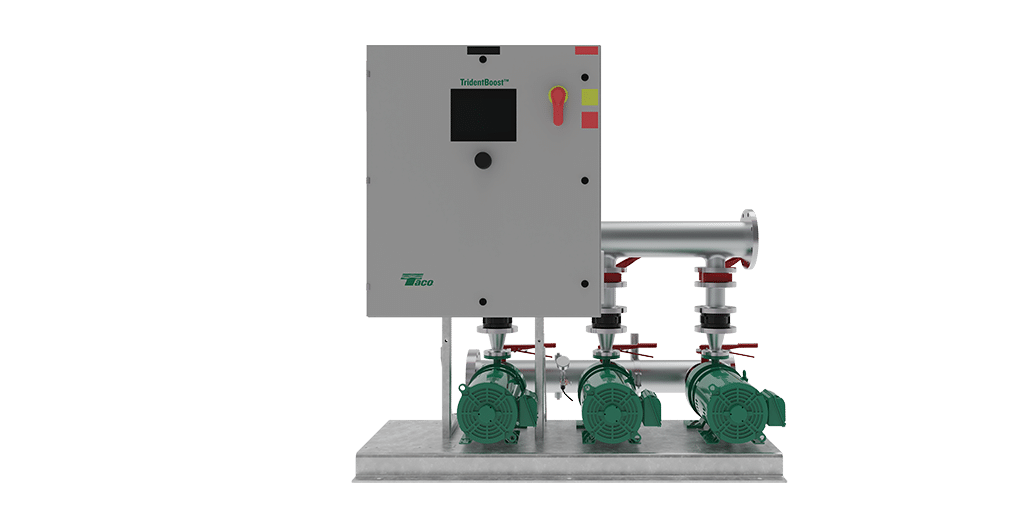

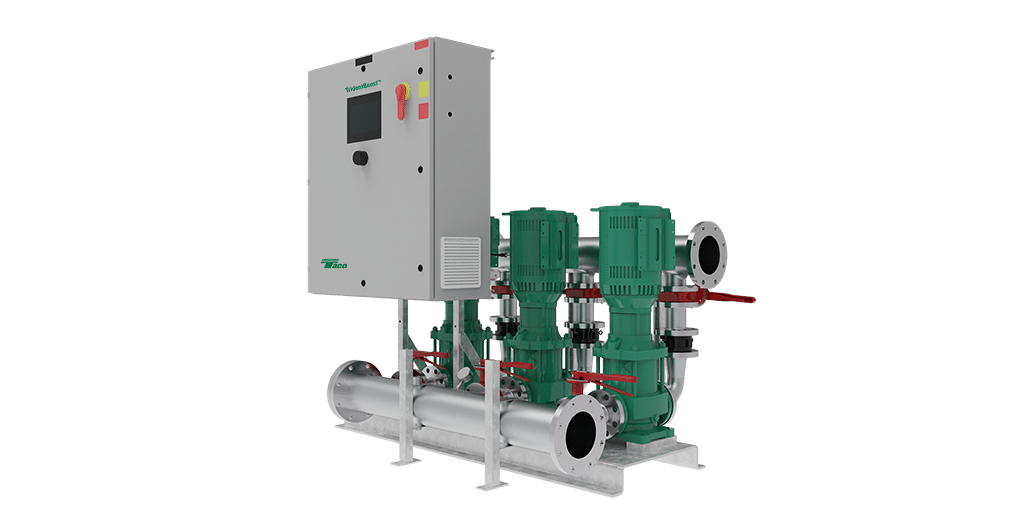

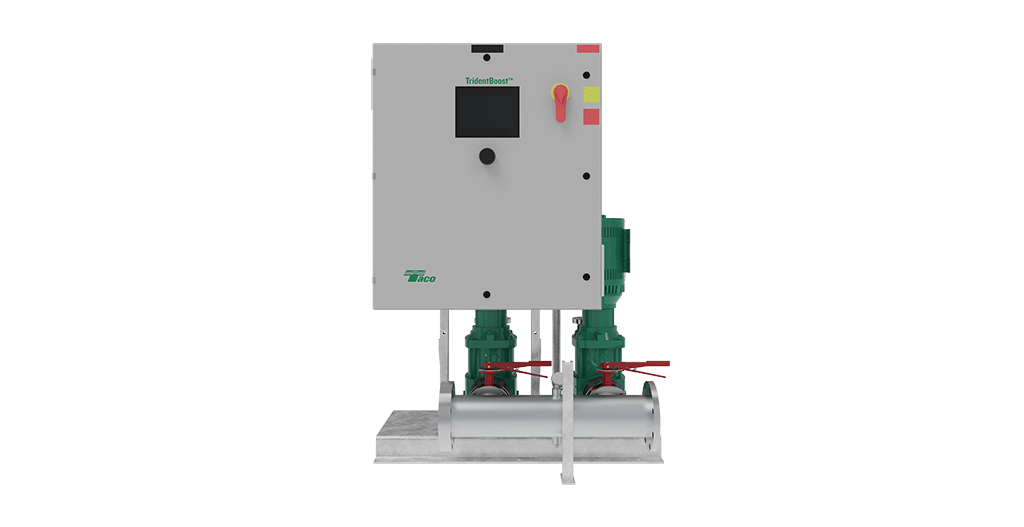

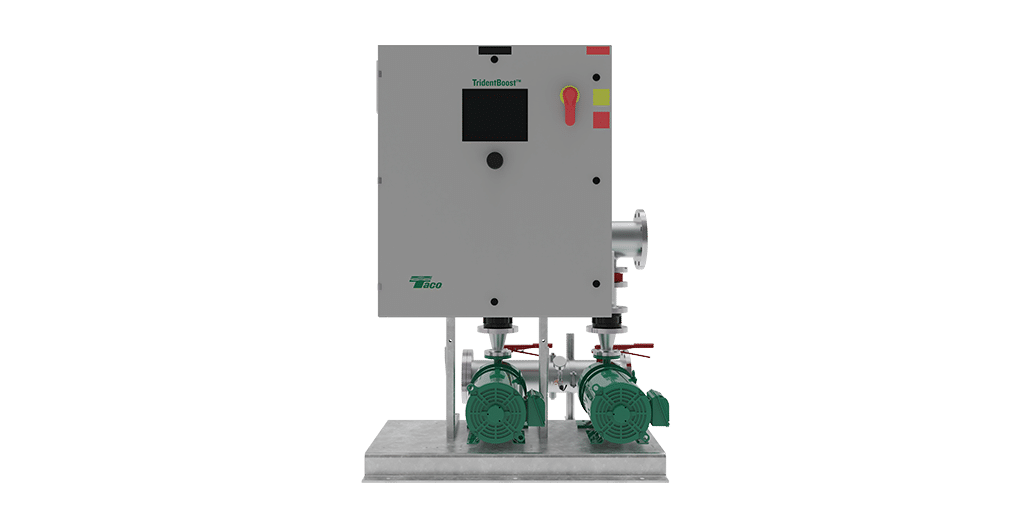

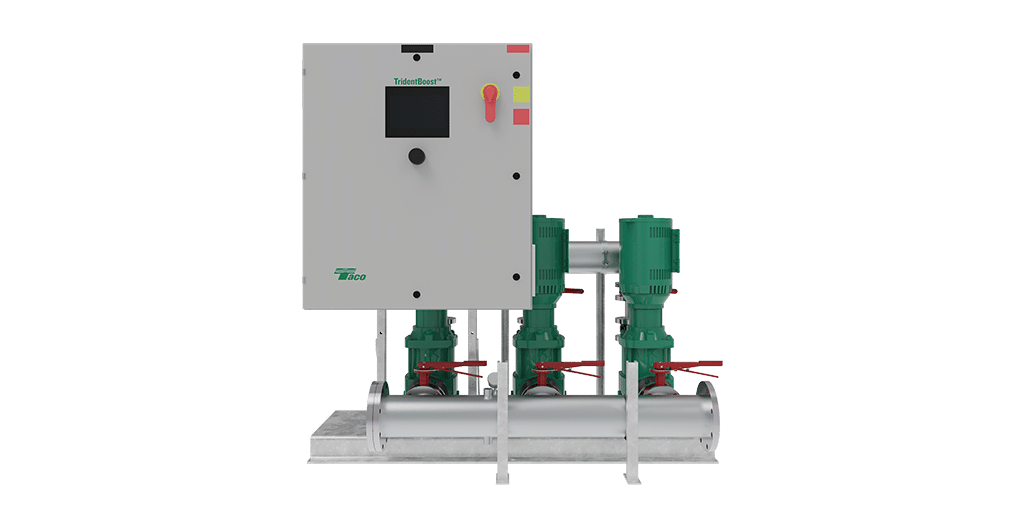

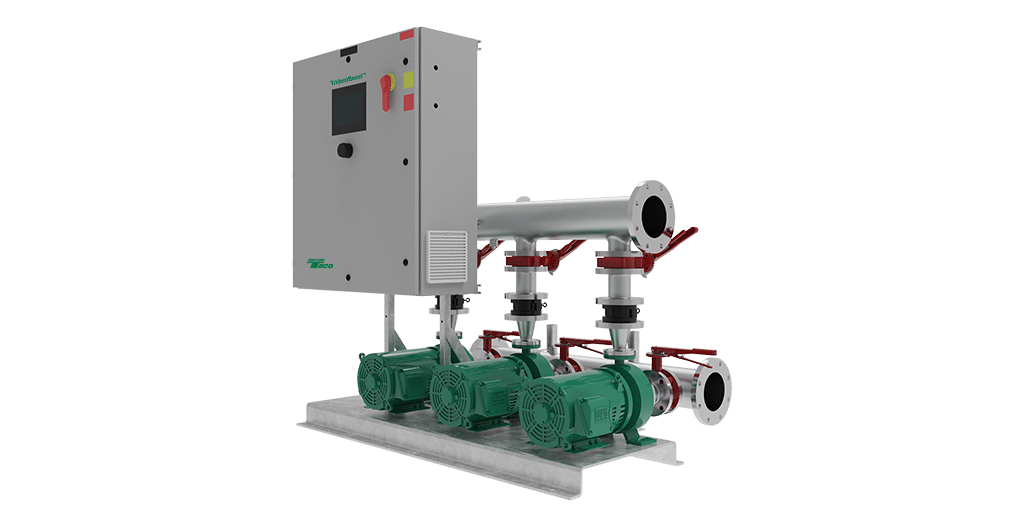

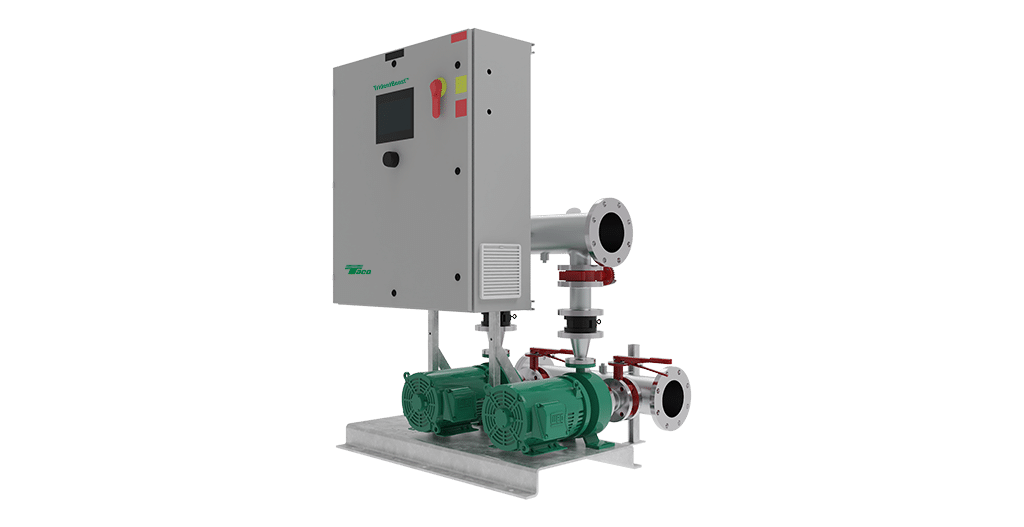

Taco TridentBoost™ Booster Pump System

The Taco TridentBoost™️ booster pump system is engineered for maximum efficiency, flexibility and ease of use in commercial and industrial water pressure boosting applications. Featuring a vibrant 10” HMI color touchscreen with an intuitive user interface and startup wizard, the TridentBoost simplifies commissioning — no laptop required. Operators can quickly access system settings and diagnostics, making setup and maintenance faster and more reliable.

Intuitive Touchscreen Control
The large HMI color touchscreen provides clear navigation and step-by-step startup guidance, reducing installation time and ensuring accuracy. On-screen diagnostics make troubleshooting simple, minimizing downtime and service costs.

Energy-Efficient, Reliable Design
The TridentBoost’s updated control panel includes a fan-forced cooling system to deliver long-term reliability while meeting ASHRAE 90.1 energy efficiency standards. This ensures optimized performance while helping facilities reduce energy consumption and operating costs.

Flexible Pump Configurations
Engineered for versatility, the newly designed skid supports both end suction pumps and vertical multi-stage pumps, giving contractors and engineers customizable configurations to meet unique application demands.

Low-Maintenance Installation
With a field-configurable, no-gasket header design and rotatable control panel, the TridentBoost allows for quick on-site modifications and simplified installation. Its streamlined construction makes it a low-maintenance booster pump solution for long-term performance.

Catalog
Instruction Sheet
Submittal Data
Find your Taco Sales Representative
Click below to get in touch with your local Taco supplier:
Find a Rep
We’re Here to Help
Support is only a click away! Our dedicated customer service and tech support teams are waiting to hear from you.
Support
Performance Data

Max Flow: 702 GPM

Max Boost Pressure (ft): 278 ft

HP: 3-15 HP

Sizes: Duplex, Triplex

Features
  • 100K SCCR Nema 12 Panel

  • Meets safety and compliance guidelines

  • 10” Full Color High Resolution Touch Screen

  • Largest touch screen on the market

  • Stainless Steel Field Configurable Headers

  • Headers are flanged on both ends, with a Stainless Steel blind flange on one end

  • Field Configurable Panel

  • Panel stand with pre-drilled holes so it can be sat both parallel and perpendicular

  • Fan Powered Ventilation System

  • Provided panel with built in thermal relief

  • Intuitive Step-By-Step Start Up Wizard

  • Easy to follow guide that will get your system started up in no time.

  • Compatible with VMS and End Suction Pumps

  • Taco CI and VMS Pumps

  • Built to the Latest Standards

  • NSF 61 and ASHRAE 90.1

Applications
  • Domestic Water Boosting

  • Municipalities and Utilities

  • Multi-Residential and Commercial Buildings

  • Industrial Process Water Boosting

  • Heating and Cooling Applications
